Data, Analog, and  Encrypted Transmitters, Receivers, and Transceivers for UAV and UGV Applications

Analog, Encrypted, and Data Transmitters & Receivers for Drones, UAV, and UGV Applications

Advanced Microwave Products offers high quality video and data transmission products designed for rugged drones, UAS, UAV, UGV, and Military applications.

Explore AMP’s innovative product lines and discover why AMP products are becoming the video and data transmission products of choice for defense contactors and military agencies around the world.

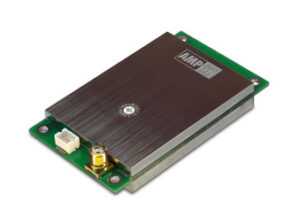

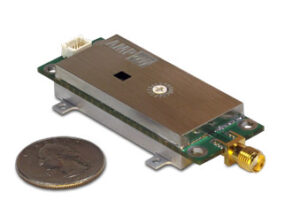

PST1PSR1

AMP’s product lines include:

P Series Description
Description: PCB Analog FM Video Transmitters and Receivers
Applications: Ideal for line of sight applications where weight, size, and low power consumption are key concerns
Key Features: High efficiency, optional audio or data subcarrier, up to 4 selectable output powers, miniature packages, very light
Standard Bands: UHF, L-band, S-Band, C-Band, custom frequencies available
Products:  PMT1 Transmitter, PST1 Transmitter, PSR1 Receiver, PDR1 Receiver
F Series Description
Description: FSK Data Transceivers, Transmitters, and Receivers
Applications: Ideal for remote data transmission, PTZ controls, telemetry links, and backchannel communications
Key Features: Up to 115.2 kbps; RS-232, TTL (3.3V), or RS422 data formats; high sensitivity; compact rugged enclosures
Standard Bands: 433.0-434.8 MHz, 868.0-870.0 MHz, 902.0-928.0 MHz, 2400-2500 MHz, custom frequencies available
Products: FMX1 Transceiver,  FSX1 Transceiver,  FMT1 Transmitter, FSR1 Receiver
H Series Description
Description: RF and Microwave Power Amplifiers
Applications: Range extension of AMP’s analog and digital transmitters or other transmission sources
Key Features: High efficiency, up to 4 selectable output powers, compact rugged enclosures
Standard Bands: UHF, L-band, S-Band, C-Band, custom frequencies available
Products: HSP1, HSF1,  HHA1, HSN1, HSD1
V Series Description
Description: Analog FM Video Transmitters and Receivers
Applications: Ideal for line of sight applications where small size and low power consumption are key concerns
Key Features: High efficiency, up to 2 optional audio or data subcarriers, up to 4 selectable output powers, compact rugged enclosures
Standard Bands: UHF, L-band, S-Band, C-Band, custom frequencies available
Products:  VST1 Transmitter, VHT1 Transmitter, VSR1 Receiver, VDR1 Receiver
E Series Description
Description: Secure (Encrypted) Video Transmitters and Receivers
Applications: Ideal for line of sight applications where a secure link is required
Key Features: 256-bit encryption, high efficiency, digital quality video (DVA), optional stereo audio, auxiliary data channel (DVA), up to 4 selectable power output powers, compact rugged enclosures
Standard Bands: UHF, L-band, S-Band, C-Band, custom frequencies available
Products:  EST1 Transmitter, ESR1 Receiver, EDR1 Receiver
